Tap holder 8 x 2,8

Preview: Tap holder 8 x 2,8 Preview: Drawing Tap holder 8 x 2,8
Tap holder 8 x 2,8

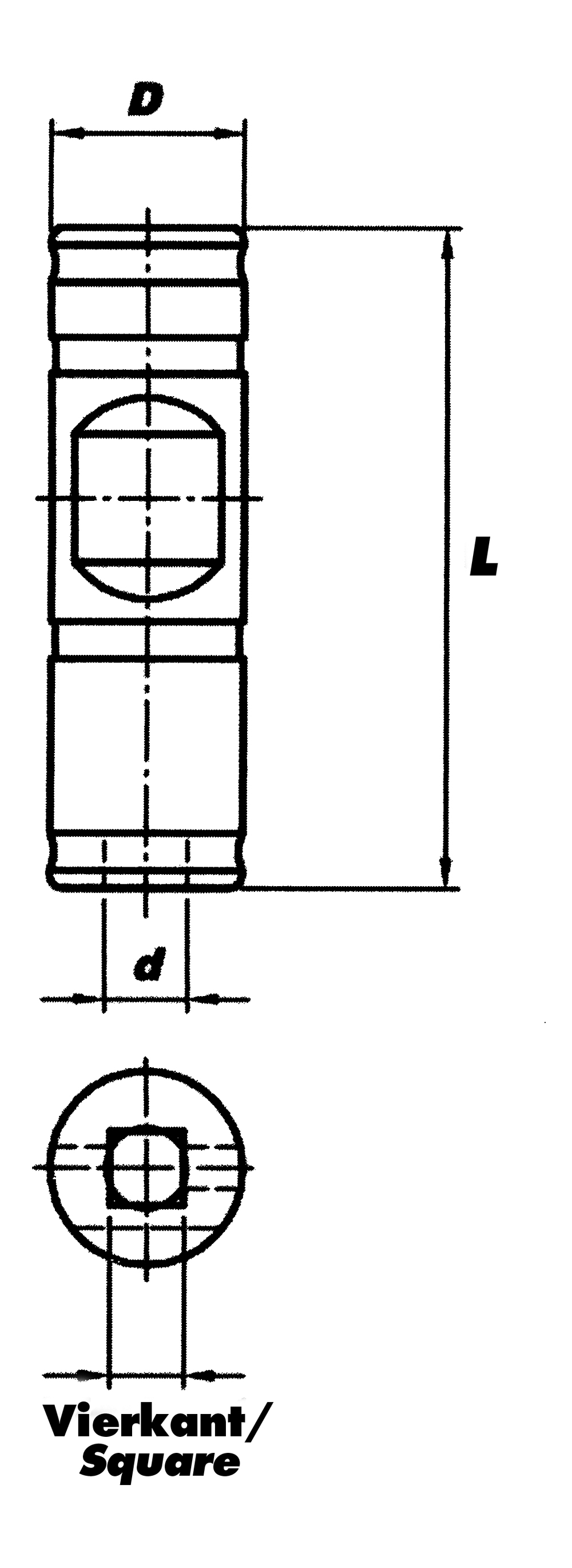

Drawing Tap holder 8 x 2,8

€32.54 *
€38.72 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 81-GEW-8X2,8
  • Customs tariff number: 8466 1020
  • European article number: 4049794004517
  • Weight: 0,05 kg
  • In stock: 7
Description Technical data Evaluations 0
Description
Tap holder for machines with rigid tapping - suitable for standard Weldon chucks  ... more
Close menu
Product information "Tap holder 8 x 2,8"

Tap holder
for machines with rigid tapping

- suitable for standard Weldon chucks
  according to DIN 1835 B
- no slip between tap holder and drill
- 100% blade cooling if internal coolant supply is selected

External-Ø 8 mm
Internal-Ø 2,8 mm

Type: Tap holders
Ø : 8 mm
Related links to "Tap holder 8 x 2,8"
Technical data
D mm d mm Vierkant / Square mm L mm 8 2,5 2,1 27 8 2,8... more
Zurück
D
mm		 d
mm		 Vierkant /
Square mm		 L
mm
8 2,5 2,1 27
8 2,8 2,1 27
10 3,5 2,7 35
10 4,0 3,0 35
10 4,5 3,4 35
12 6,0 4,9 45
14 7,0 5,5 45
14 8,0 6,2 45
16 9,0 7,0 48
16 10,0 8,0 48
18 11,0 9,0 48
20 12,0 9,0 50
25 14,0 11,0 56
25 16,0 12,0 56
32 18,0 14,5 60
32 20,0 16,0 60
32 22,0 18,0 60
40 25,0 20,0 70
40 28,0 22,0 70
50 32,0 24,0 80
50 36,0 29,0 80
50 40,0 32,0 80

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
