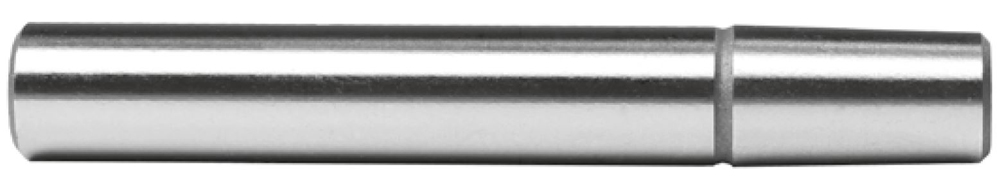

Taper arbor with cylinder shank Ø 10x50 mm / B16
Product number:
13-5348-10-50-B16
Customs tariff number
8466 1020
European Article Number
4049794004760
Weight
0,1 kg
Stock:
10
Related links:
Request Item
Product information "Taper arbor with cylinder shank Ø 10x50 mm / B16"
Taper arbor with cylinder shank
- completely hardened and ground
- shaft: Ø 10 x 50 mm
- taper B 16
| Taper: | B 16 |
|---|---|
| Type: | Taper arbors |
| Ø : | 10 mm |

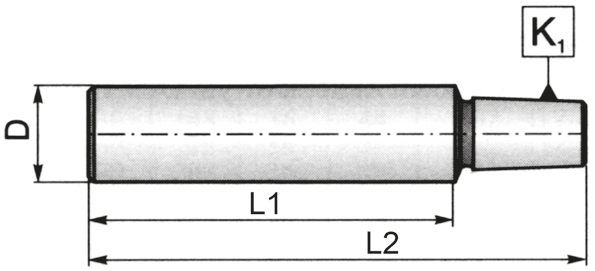

Technical Data
| D mm |
L1 mm |
Kegel / Taper |
L2 mm |
| 8 | 35 | B 10 | 55 |
| 10 | 50 | B 10 | 70 |
| 10 | 50 | B 12 | 75 |
| 10 | 50 | B 16 | 82 |
| 12 | 50 | B 16 | 82 |
| 12 | 60 | B 16 | 92 |
| 16 | 50 | B 16 | 81 |
| 16 | 70 | B 16 | 101 |
| 20 | 60 | B 12 | 87 |
| 20 | 60 | B 16 | 93 |
| 20 | 60 | B 18 | 100 |
| 25 | 75 | B 16 | 107 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
