Taper arbor with cylinder shank Ø 20x60 mm / B18

Preview: Taper arbor with cylinder shank Ø 20x60 mm / B18 Preview: Drawing Taper arbor with cylinder shank Ø 20x60 mm / B18

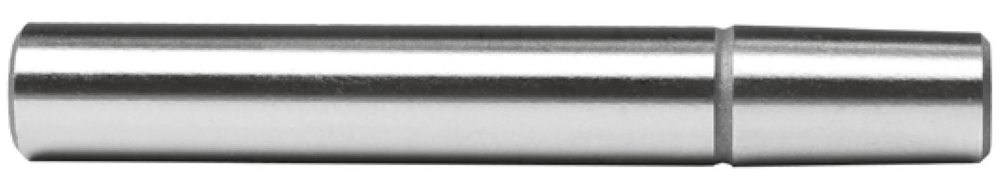

Taper arbor with cylinder shank Ø 20x60 mm / B18

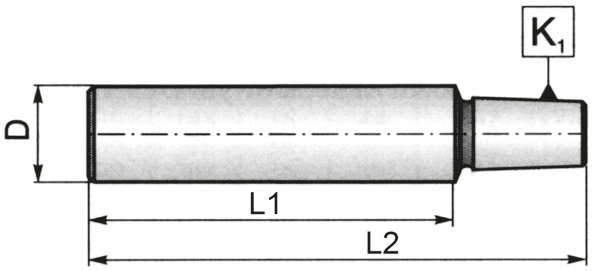

Drawing Taper arbor with cylinder shank Ø 20x60 mm / B18

€10.22 *
€12.16 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-5348-20-60-B18
  • Customs tariff number: 8466 1020
  • European article number: 4049794004852
  • Weight: 0,3 kg
  • In stock: 15
Description Technical data Evaluations 0
Description
Taper arbor with cylinder shank - completely hardened and ground - shaft: Ø 20 x 60 mm... more
Close menu
Product information "Taper arbor with cylinder shank Ø 20x60 mm / B18"

Taper arbor with cylinder shank

- completely hardened and ground
- shaft: Ø 20 x 60 mm
- taper B 18

Type: Taper arbors
Taper: B 18
Ø : 20 mm
Related links to "Taper arbor with cylinder shank Ø 20x60 mm / B18"
Technical data
D mm L1 mm Kegel / Taper L2 mm 8 35 B 10 55 10 50 B 10 70... more
Zurück
D
mm		 L1
mm		 Kegel /
Taper		 L2
mm
8 35 B 10 55
10 50 B 10 70
10 50 B 12 75
10 50 B 16 82
12 50 B 16 82
12 60 B 16 92
16 50 B 16 81
16 70 B 16 101
20 60 B 12 87
20 60 B 16 93
20 60 B 18 100
25 75 B 16 107

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
