Test arbor DIN 69880, VDI 16

Preview: Test arbor DIN 69880, VDI 16 Preview: Drawing Test arbor DIN 69880, VDI 16
Test arbor DIN 69880, VDI 16

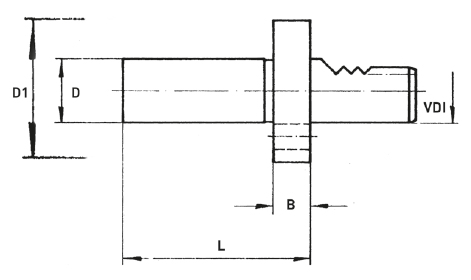

Drawing Test arbor DIN 69880, VDI 16

€192.31 *
€228.85 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 83-PD-16-30
  • Customs tariff number: 8466 1031
  • European article number: 4049794010693
  • Weight: 0,8 kg
  • In stock: 10
Description Technical data Evaluations 0
Description
Test arbor VDI 16 - DIN 69880 - wooden case and calibration certificate upon request more
Close menu
Product information "Test arbor DIN 69880, VDI 16"

Test arbor VDI 16 - DIN 69880

- wooden case and calibration certificate upon request

Type: Test arbors
DIN: 69880
VDI: 16
Related links to "Test arbor DIN 69880, VDI 16"
Technical data
VDI D mm D1 mm L mm B mm 16 30 40 120 15... more
Zurück
VDI D
mm		 D1
mm		 L
mm		 B
mm
16 30 40 120 15
20 40 50 150 15
25 40 58 150 15
30 40 68 200 15
40 40 83 200 15
50 40 98 200 15

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
