Test arbor HSK 50, DIN 69893

Preview: Test arbor HSK 50, DIN 69893 Preview: Detail Test arbor HSK 50, DIN 69893 Preview: Drawing Test arbor HSK 50, DIN 69893
Test arbor HSK 50, DIN 69893

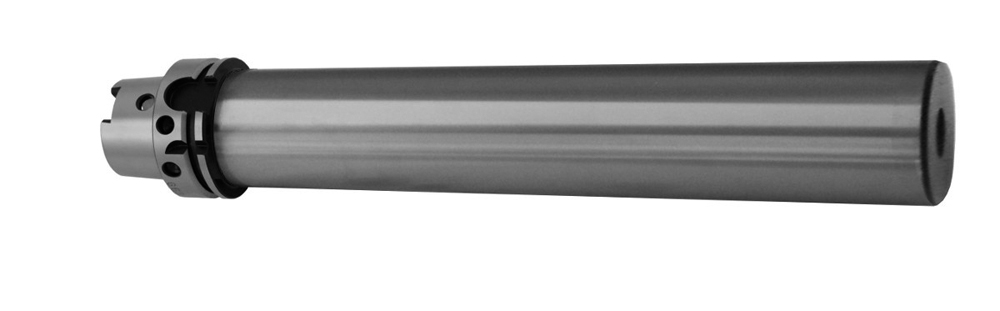

Detail Test arbor HSK 50, DIN 69893

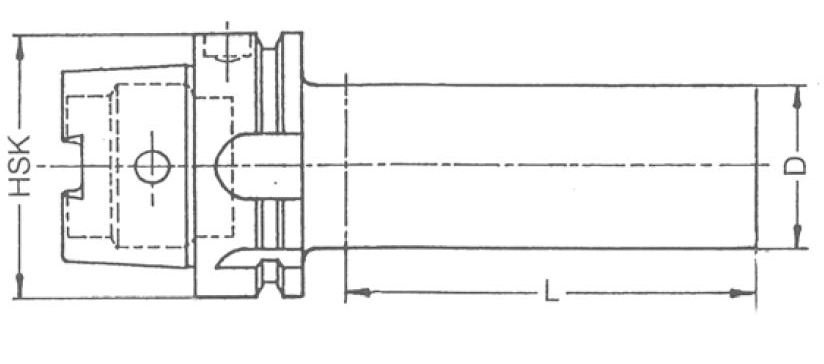

Drawing Test arbor HSK 50, DIN 69893

€399.53 *
€475.44 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 09-PD-HSK50
  • Customs tariff number: 8466 1038
  • European article number: 4049794060384
  • Weight: 1,4 kg
  • In stock: 5
Description Technical data Evaluations 0
Description
Test arbor DIN 69893, HSK 50 - supplied in wooden case with calibration certificate -... more
Close menu
Product information "Test arbor HSK 50, DIN 69893"

Test arbor DIN 69893, HSK 50

- supplied in wooden case with calibration certificate
- concentricity: 0,003 mm
- cylindricity: 0,003 mm

Type: Test arbors
DIN: 69893
Size: HSK 50
Related links to "Test arbor HSK 50, DIN 69893"
Technical data
Größe / Size L mm D mm HSK 32 170 25 HSK 40 170 25... more
Zurück
Größe /
Size		 L
mm		 D
mm
HSK 32 170 25
HSK 40 170 25
HSK 50 200 32
HSK 63 300 40
HSK 80 300 40
HSK 100 300 50

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
