Sinus vice type TMV-SB2-50, with scales
Product number:
14-TMV-SB2-50
Customs tariff number
8466 2098
European Article Number
4049794684245
Weight
11 kg
Stock:
0
Related links:
Request Item
Product information "Sinus vice type TMV-SB2-50, with scales"
Sinus vice TMV-SB2-50, with scales
- adjustable in 2 axis
- 360° rotatable, 60° tiltable
- vernier
- parallelism: 0,005 mm / 100 mm
- squareness: 0,005 mm / 100 mm
| Clamping capacity: | 70 mm |
|---|---|
| Jaw width: | 50 mm |
| Make: | Zentra |
| Type: | mechanically |
| Type: | Sine vices |

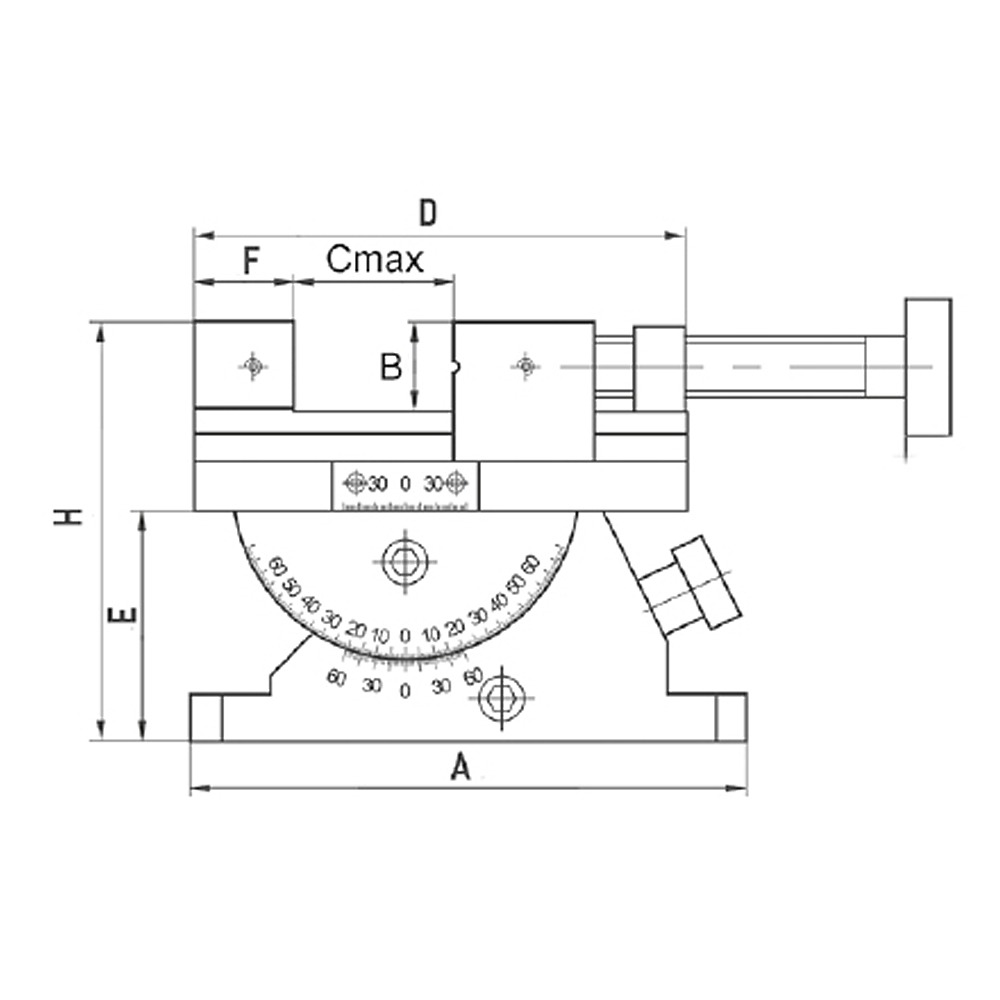

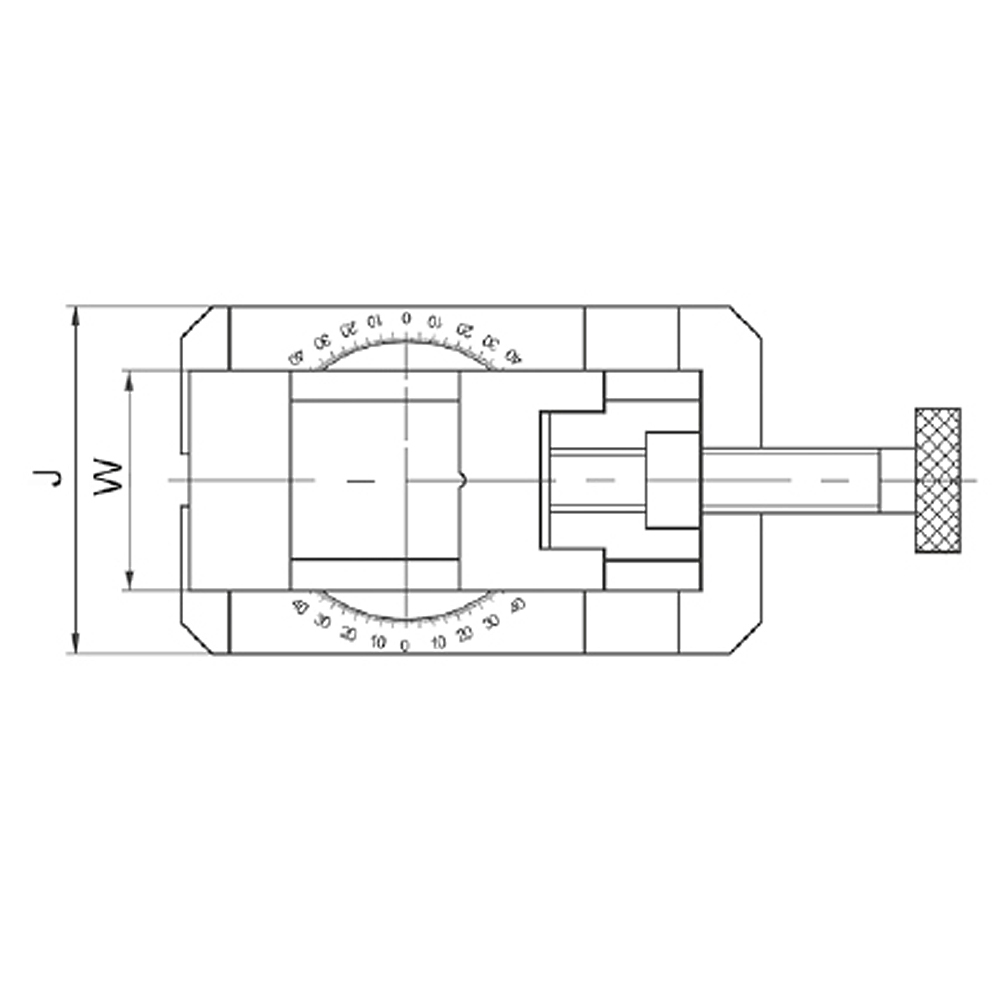

Technical Data
| Typ / Type |
A mm |
W mm |
B mm |
D mm |
E mm |
F mm |
Cmax mm |
H mm |
J mm |
kg |
| SB2-50 | 180 | 50 | 25 | 128 | 55 | 25 | 70 | 105 | 72 | 11 |
| SB2-80 | 195 | 70 | 30 | 160 | 75 | 30 | 80 | 137 | 110 | 14 |
| SB2-120 | 400 | 120 | 40 | 282 | 120 | 40 | 155 | 210 | 180 | 52 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
