Three-jaw power chuck V-210 Ø 254 mm
€1,541.00*
Available, delivery time: 1-3 workdays
Product information "Three-jaw power chuck V-210 Ø 254 mm"
Three-jaw power chuck V-210 centre mount,
without bore - serration 1,5 x 60°
- type V-210 Ø 254 mm
- steel
- all sliding surfaces are hardened and ground
for high runout precision and long service life
- lubrication nipple in each base jaw
- incl. 1 set each of hardened base jaws and soft top jaws,
fixation screws
| DIN: | centre mount |
|---|---|
| Through hole: | without |
| Type: | 3-jaw lathe chucks |
| Ø : | 254 mm |
Technical Data
| Typ / Type |
Backenhub / Jaw stroke mm |
Zugrohrhub / Plunger stroke mm |
Spannbereich max. / Gripping max. mm |
Spannbereich min. / Gripping min. mm |
Max. Betätigungskraft / Max. pull force (kN) |
Max. Spannkraft / Max. gripping force (kN) |
| V-210 | 8,8 | 25 | 254 | 16 | 29 | 108 |
| Max. Betätigungsdruck / Max. operating pessure (kN) |
Trägheitsmoment / Moment of inertia (kgf-m2) |
Passende harte Aufsatzbacken / Matching hard jaws |
Passende weiche Aufsatzbacken / Matching soft jaws |
Passender Zylinder / Matching cylinder |
Max. Drehzahl / Max. speed (rpm) |
kg |
| 28,6 | 0,3 | HJ10 | HC10 | MH125 | 3500 | 34,5 |

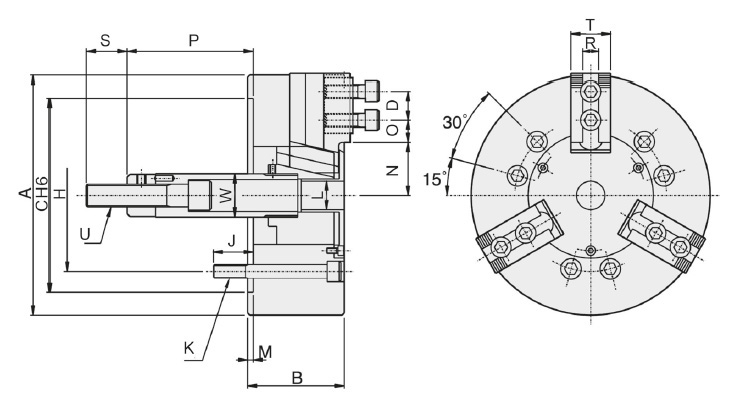

| Typ / Type |
A mm |
B mm |
C(H6) mm |
M mm |
H mm |
L mm |
K mm |
J mm |
D mm |
| V-210 | 254 | 89 | 220 | 5 | 171,45 | 34 | 6-M16 | 18 | 30 |
| N max. mm |
O max. mm |
O min. mm |
P max. mm |
P min. mm |
T mm |
R mm |
S mm |
U mm |
W mm |
| 51,1 | 37,5 | 10,5 | 158 | 133 | 40 | 16 | 36 | M20x2,5 | 45 |
| Inkl. je 1 Satz Grund- und weiche Aufsatzbacken, Befestigungsschrauben / Incl. 1 set each of hardened base jaws and soft top jaws, fixation screws |
|||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
