Two-jaw power chuck NT-208 Ø 210 mm
€1,456.92
Available, delivery time: 1-3 workdays
Product information "Two-jaw power chuck NT-208 Ø 210 mm "
Two-jaw power chuck NT-208 centre mount,
with bore - serration 1,5 x 60°
- type NT-208 Ø 210 mm
- steel
- all sliding surfaces are hardened and ground
for high runout precision and long service life
- lubrication nipple in each base jaw
- jaws compatible with Kitagawa type BT200
- incl. 1 set each of hardened base jaws and soft top jaws,
fixation screws, blank draw tube adaptor
| DIN: | centre mount |
|---|---|
| Through hole: | with |
| Type: | 2-jaw lathe chucks |
| Ø : | 210 mm |
Technical Data
| Typ / Type |
Backenhub / Jaw stroke mm |
Zugrohrhub / Plunger stroke mm |
Max. Betätigungskraft / Max. draw bar pull force (kN) |
Max. Spannkraft / Max. gripping force (kN) |
| NT-208 | 7,4 | 16 | 22,06 | 54,92 |
| Passende harte Aufsatzbacken / Matching hard jaws |
Passende weiche Aufsatzbacken / Matching soft jaws |
Passender Zylinder / Matching cylinder |
Max. Drehzahl / Max. speed (rpm) |
kg |
| HJ08 | HC08 | M1552 | 4900 | 22 |

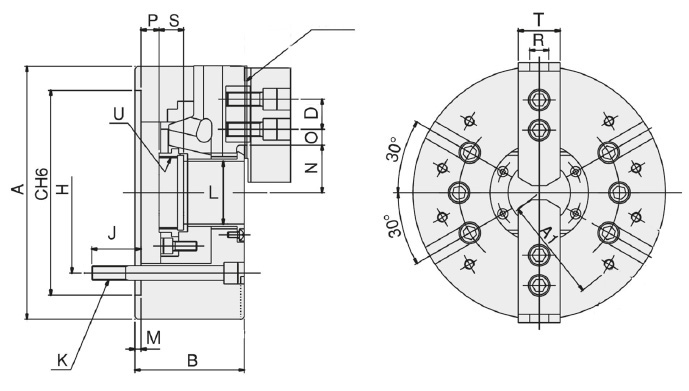

| Typ / Type |
A mm |
B mm |
C(H6) mm |
S mm |
H mm |
M mm |
Q mm |
R mm |
J mm |
| NT-208 | 210 | 91 | 170 | 23,5 | 133,35 | 5 | 37 | 14 | 22 |
| K | N max. |
O max. |
O min. |
P max. |
P min. |
L mm |
U max. |
D mm |
|
| 6-M12 | 38,7 | 30 | 10,5 | 14,5 | -1,5 | 52 | M60x2 | 25 | |
| Inkl. je 1 Satz Grund- und weiche Aufsatzbacken, Befestigungsschrauben, Zugrohradapterrohling / Incl. 1 set each of hardened base jaws and soft top jaws, fixation screws, blank draw tube adaptor |
|||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
